Door opening dimensions: Can be customized
Applicable temperature:-95℃~+160℃
Door thickness: 75mm，100mm，150mm，200mm
Material of door leaf:Stainless steel or color steel
Door leaf material: High performance thermal insulation flame retardant polyurethane (PU)
Sealing material:TPE rubber or silicone
Door frame material:Aluminum alloy (anodized and anticorrosive)
Heating method: Door frame and door leaf have heating wire
Transmission mode: Rack and pinion drive
Switch control:Button, pull cord, remote control, geomagnetic
Safety devices:Airbag
Optional configuration: Anti-fog tempered glass window
Power supply: 220V/50HZ (for heating wire), 380V/50HZ (for motor)

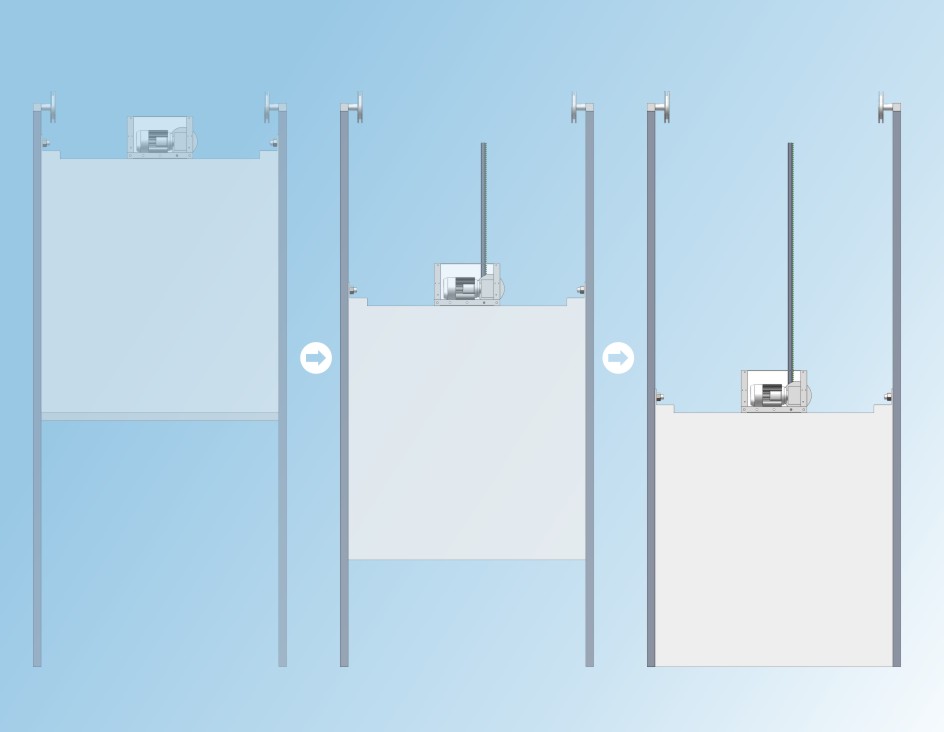

Product principle: The start and stop of the motor is controlled by the button (pull wire, remote control, geomagnetic) switch, and the motor drives the rack drive to achieve the function of opening and closing the door
Application scenarios: Refrigerated storage/workshop, environmental laboratory, modern cold chain logistics, large freight center, sea and air port, medicine and biochemistry, dust-free noise prevention workshop, modern supermarket, food processing and so on
- The door leaf and door frame are made of imported TPE rubber strips, which are wear-resistant, high and low-temperature resistant, and anti-aging. The service life is 30 times that of EPDM
- The transmission adopts gears and special high-strength engineering plastic racks, with low noise, high reliability, no lubrication, and no loosening and falling off like chain transmission
- All electric sliding doors are speed-regulated by frequency converters dedicated to cold storage doors (panasonic for the main board), so that the cold storage doors are in a low-speed stable and non-collision state when they are opened and closed, and are in a high-speed travel state when running in the driving area. Compared with the constant speed door, the opening and closing time is reduced by about 1/3, which greatly reduces the leakage of cold; at the same time, it reduces the mechanical collision and prolongs the life of the accessories. (Electric door)
- The "floating, sinking, and closed" system is adopted, which not only reduces the friction on the sealant, ensures the smooth movement of the door and the best sealing effect (the door leaf sinks when the door is closed, and the downward and inward pressure is equalized. 7mm)
- The 2.0mm thick stainless steel plate is used for edging around the door leaf, which makes the overall structure firm, with high impact strength, stable operation, and no deformation after decades of operation, especially suitable for large and thick door leaves
